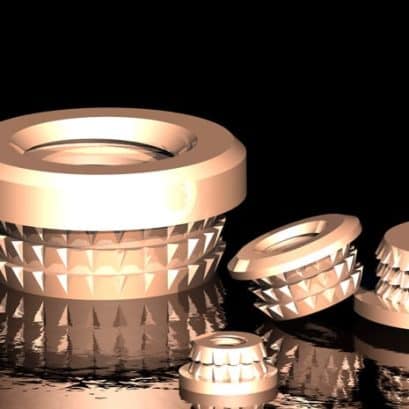

0006M10

Insert Design Part No.: 0006M10 Thread Size: M10 Pitch (internal): 1.50 Barbs (no. of rows): 3 Head Thickness T: 3.15 Head Diameter D: 16.00 Length L: 4.55 Hole Design Hole Diameter C: 13.05 Hole Depth Y: 4.75 Counter Sink B (+0.10): 0.60

073M1.6

Insert Design Part No.: 073M1.6 Thread Size: M1.6 Pitch (internal): 0.35 Head Thickness T: 0.50 Head Diameter D: 3.20 Length L: 2.00 Hole Design Hole Diameter C: 2.3-2.5 Hole Depth Y: 2.20 Boss Diameter X: 4.50 Wall Thickness W: 1.00

0006M6

Insert Design Part No.: 0006M6 Thread Size: M6 Pitch (internal): 1.00 Barbs (no. of rows): 3 Head Thickness T: 1.70 Head Diameter D: 12.70 Length L: 3.00 Hole Design Hole Diameter C: 9.55 Hole Depth Y: 3.20 Counter Sink B (+0.10): 0.25

0006M8

Insert Design Part No.: 0006M8 Thread Size: M8 Pitch (internal): 1.25 Barbs (no. of rows): 3 Head Thickness T: 1.70 Head Diameter D: 14.30 Length L: 4.55 Hole Design Hole Diameter C: 11.55 Hole Depth Y: 4.75 Counter Sink B (+0.10): 0.60

0006M4

Insert Design Part No.: 0006M4 Thread Size: M4 Pitch (internal): 0.70 Barbs (no. of rows): 3 Head Thickness T: 1.00 Head Diameter D: 7.90 Length L: 3.00 Hole Design Hole Diameter C: 6.13 Hole Depth Y: 3.20 Counter Sink B (+0.10): 0.25

0006M5

Insert Design Part No.: 0006M5 Thread Size: M5 Pitch (internal): 0.80 Barbs (no. of rows): 3 Head Thickness T: 1.40 Head Diameter D: 10.00 Length L: 3.00 Hole Design Hole Diameter C: 7.70 Hole Depth Y: 3.20 Counter Sink B (+0.10): 0.25

0006M2.5

Insert Design Part No.: 0006M2.5 Thread Size: M2.5 Pitch (internal): 0.45 Barbs (no. of rows): 2 Head Thickness T: 0.85 Head Diameter D: 5.60 Length L: 1.85 Hole Design Hole Diameter C: 4.15 Hole Depth Y: 2.00 Counter Sink B (+0.10): N/A

0006M3

Insert Design Part No.: 0006M3 Thread Size: M3 Pitch (internal): 0.50 Barbs (no. of rows): 2 Head Thickness T: 0.85 Head Diameter D: 6.10 Length L: 1.85 Hole Design Hole Diameter C: 4.66 Hole Depth Y: 2.00 Counter Sink B (+0.10): N/A

018M2

Insert Design Part No.: 018M2 Thread Size: M2 Pitch (internal): 0.40 Dia (external) B (± 0.25): 3.40 Bolt Engagement E (min): 3.75 No. of Full Threads: 6.30 Counter Bore S: 0.85 Length L (± 0.25): 5.600 Pin Design Length G: (+0.0/-0.25) 2.50 Diameter H: 1.60 Lead K: 0.20 Shoulder Angle J: 6.00 Shoulder Dia. F: [...]

0006M2

Insert Design Part No.: 0006M2 Thread Size: M2 Pitch (internal): 0.40 Barbs (no. of rows): 2 Head Thickness T: 0.55 Head Diameter D: 4.90 Length L: 1.35 Hole Design Hole Diameter C: 3.30 Hole Depth Y: 1.45 Counter Sink B (+0.10): N/A

118M6

Insert Design Part No.: 118M6 Thread Size: M6 Pitch (internal): 1.00 Dia (external) B (± 0.25): 10.00 Bolt Engagement E (min): 10.35 No. of Full Threads: 7.00 Counter Bore S: 1.85 Length L (± 0.25): 14.500 Pin Design Length G: (+0.0/-0.25) 6.75 Diameter H: 5.00 Lead K: 0.45 Shoulder Angle J: 2° Shoulder Dia. F: [...]

118M8

Insert Design Part No.: 118M8 Thread Size: M8 Pitch (internal): 1.25 Dia (external) B (± 0.25): 11.50 Bolt Engagement E (min): 12.00 No. of Full Threads: 7.00 Counter Bore S: 2.05 Length L (± 0.25): 16.600 Pin Design Length G: (+0.0/-0.25) 9.00 Diameter H: 6.80 Lead K: 0.50 Shoulder Angle J: 2°15’ Shoulder Dia. F: [...]

118M10

Insert Design Part No.: 118M10 Thread Size: M10 Pitch (internal): 1.50 Dia (external) B (± 0.25): 13.90 Bolt Engagement E (min): 13.00 No. of Full Threads: 6.30 Counter Bore S: 2.15 Length L (± 0.25): 18.000 Pin Design Length G: (+0.0/-0.25) 10.00 Diameter H: 8.50 Lead K: 0.55 Shoulder Angle J: 2°15’ Shoulder Dia. F: [...]

118M4

Insert Design Part No.: 118M4 Thread Size: M4 Pitch (internal): 0.70 Dia (external) B (± 0.25): 5.90 Bolt Engagement E (min): 7.05 No. of Full Threads: 6.80 Counter Bore S: 1.60 Length L (± 0.25): 10.300 Pin Design Length G: (+0.0/-0.25) 5.00 Diameter H: 3.30 Lead K: 0.35 Shoulder Angle J: 2°15’ Shoulder Dia. F: [...]

118M5

Insert Design Part No.: 118M5 Thread Size: M5 Pitch (internal): 0.80 Dia (external) B (± 0.25): 6.60 Bolt Engagement E (min): 8.35 No. of Full Threads: 6.70 Counter Bore S: 1.75 Length L (± 0.25): 11.300 Pin Design Length G: (+0.0/-0.25) 5.75 Diameter H: 4.20 Lead K: 0.40 Shoulder Angle J: 2°30’ Shoulder Dia. F: [...]

018M2.5

Insert Design Part No.: 018M2.5 Thread Size: M2.5 Pitch (internal): 0.45 Dia (external) B (± 0.25): 4.15 Bolt Engagement E (min): 4.10 No. of Full Threads: 6.00 Counter Bore S: 0.95 Length L (± 0.25): 6.500 Pin Design Length G: (+0.0/-0.25) 2.50 Diameter H: 1.60 Lead K: 0.20 Shoulder Angle J: 6.00 Shoulder Dia. F: [...]
