Ensat Inserts – Performance Details

The use of self-tapping inserts has significant advantages over pre-tapped holes, moulded-in inserts and wire thread inserts. They eliminate close tolerance holes required for tapping directly into the base material, damaged tools and low productivity resulting from moulded-in inserts and the time consuming process of placing wire thread inserts into pre-tapped holes.

The use of a self-tapping insert can result in a reduction in thread size required because of the insert’s large effective shear surface saving material and reducing cost and weight.

Tappex Products Ensat Screws

External Thread Interference

For a work-piece made of a light alloy, this diagram illustrates clearly that whilst correct hole sizes are important for product reliability, the Ensat 302 achieves almost maximum pull-out with only 30% external thread interference.

Pullout Resistance

In light alloy, the self-tapping steel insert resists a pullout force in excess of the yield point of an 8.8 grade bolt.

Tappex Ensat performance graph of flange cover to load

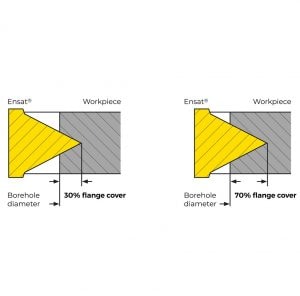

The borehole diameter and equivalent flange cover of the Tappex Ensat
Tappex Ensat performance graph showing the pull out resistance for a range of internal threads and insert materials

Click on a graph/diagram above to see a larger version.

Installation Procedure

  1. Drill hole to correct diameter, countersink if necessary.
  2. Screw the Ensat onto the driving tool with the cutting slot or cutting hole pointing downwards.
  3. Ensure that driving stud engagement into the Ensat does not exceed half the height of the cutting slot or hole
  4. Ensure that the insertion tool and Ensat are perpendicular to the hole.
  5. When using a production driver (029 series), the rotating shell must rest against the externally visible stop pins in such a way that it is driven round clockwise by the pins.
  6. Set depth control, where applicable, to 0.1/0.2mm below the surface of the receiving material.
  7. Apply reasonable downward pressure whilst driving the Ensat into the material to 0.1/0.2mm below the surface.
  8. Finally back the driving tool out of the Ensat. In the case of a production driver the friction lock will be released automatically, the hand tool will require the hexagon nut to be held as the drive is reversed.

Avoid “bottoming” the insert or using excessive torque as this may strip the insert out or reduce pull-out loading.

Most insertion problems arise from incorrect hole size, poor tool maintenance or bad insertion techniques. Adequate trials should always be carried out before moving to production.

Manual installation of the Tappex Ensat with a driving tool and tap wrench
Ensat emergency installation using a screw & nut

Samples and low volume applications

A hand tool is available for use with a tap wrench (030/031 series).

For field repair or initial tests, a nut and bolt can be used. Ensure best possible alignment of the insert in relation to the hole.

Hole size calculation

Whilst 30% thread engagement will normally give almost maximum performance, the most appropriate hole size will vary according to the type of receiving material and the type of insert to be used.

Example: Hole size for light alloy with tensile strength of 280 N/mm2 for M8 insert type 302 is 10.8 – 11.0mm, for M8 insert type 307 is 11.1 – 11.2mm.
If difficulty is experienced in installation, it is possible to take the next hole size up without a detrimental effect. However, this should always be established by tests prior to production.

Hole design

Self tapping steel inserts can be installed into drilled or core holes. Countersinking gives a neat finish and the addition of a counter bore will facilitate insert location during installation.

A = Minimum section for through hole.
B = Minimum depth of blind hole.

Minimum Wall Thickness:

The wall thickness S is dependant upon the hardness and strength of the material being used.

Cast iron: S = 0.30 to 0.50 D
Metals: S = 0.25 to 0.50 D
(D = outside dia. of the insert)

Tappex Ensat hole diagram
Ensat threaded insert borehole diameter recommendations based on material and size of insert
Select Type
Select Thread
Product Length

ENSAT® - SLOTTED - 302 0 020 50

Material: Steel - case hardened zinc plate trivalent passivate
Stainless Steel - 1.4305 (Austenitic)

Description: Self-tapping with cutting slot.

Application: This is a self-tapping insert for the creation of wear-free, vibration resistant screw joints with high load capacity in materials with low shearing strength.

Hole Size: Cored and drilled hole diameters vary dependent upon the material. Please consult our technical department for a precise recommendation, to ensure optimum production conditions. Sizes given are for guidance only.

Hole Design: The hole design information is intended to indicate the approximate dimensional requirements for satisfactory installation of the insert. They should not be specified for production tooling without prior consultation with our Application Engineering Department - we accept no responsibility should the use of this information without consultation result in product failure. Please call our application engineers for assistance +44 (0) 1789 206600

Installation: Self-tapping using a hand tool or reversible drive mechanism. Tappex offer pneumatic reversible tools mounted in a Tappex FlexiArm. In certain hard materials, the slotted end of the insert can close down making it unsuitable for through bolting. In this instance a Ensat - SB is recommended. This insert is suitable for installation into metal alloys, plastics and wood.

Insert Design

Tappex Ensat insert design
Part No.: 302 0 020 50
Thread Size: M2
Pitch (internal): 0.40
Pitch (external) P: 0.50
Diameter (external) B: 4.50
Length L: 6.00

Hole Design

A hole diagram for Tappex's Ensat
Hole Diameter C (Plastics): 4.1-4.2
Hole Diameter C (Alloys): 4.2-4.3
Wall Thickness W: 1.80
Through Hole A1: 6.00
Blind Hole B1: 8.00
