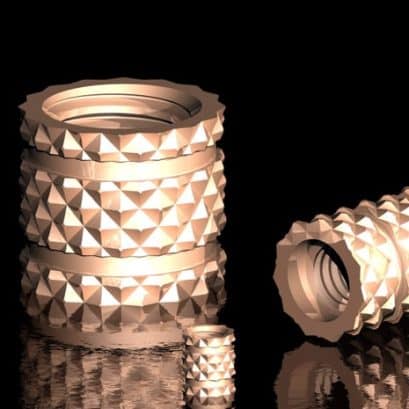

118M3

Insert Design Part No.: 118M3 Thread Size: M3 Pitch (internal): 0.50 Dia (external) B (± 0.25): 4.60 Bolt Engagement E (min): 4.75 No. of Full Threads: 6.30 Counter Bore S: 1.10 Length L (± 0.25): 7.450 Pin Design Length G: (+0.0/-0.25) 3.50 Diameter H: 2.50 Lead K: 0.25 Shoulder Angle J: 3° Shoulder Dia. F: [...]

118M3.5

Insert Design Part No.: 118M3.5 Thread Size: M3.5 Pitch (internal): 0.60 Dia (external) B (± 0.25): 5.00 Bolt Engagement E (min): 6.25 No. of Full Threads: 7.20 Counter Bore S: 1.35 Length L (± 0.25): 9.300 Pin Design Length G: (+0.0/-0.25) 4.50 Diameter H: 2.90 Lead K: 0.30 Shoulder Angle J: 2°15’ Shoulder Dia. F: [...]

117M10

Insert Design Part No.: 117M10 Thread Size: M10 Pitch (internal): 1.50 Dia (external) B (± 0.25): 13.90 Length L (± 0.05): 13.975 Pin Design Length G (+0.0/-0.25): 13.65 Diameter H: 8.50 Lead K: 1.00 Pin Design øH tolerances up to 5mm ø -0.05 to -0.075 over 5mm ø -0.1 to -0.125

117M12

Insert Design Part No.: 117M12 Thread Size: M12 Pitch (internal): 1.75 Dia (external) B (± 0.25): 16.30 Length L (± 0.05): 13.975 Pin Design Length G (+0.0/-0.25): 13.65 Diameter H: 10.25 Lead K: 1.00 Pin Design øH tolerances up to 5mm ø -0.05 to -0.075 over 5mm ø -0.1 to -0.125

117M6

Insert Design Part No.: 117M6 Thread Size: M6 Pitch (internal): 1.00 Dia (external) B (± 0.25): 9.25 Length L (± 0.05): 9.925 Pin Design Length G: (+0.0/-0.25) 9.60 Diameter H: 5.00 Lead K: 0.95 Pin Design øH tolerances up to 5mm ø -0.05 to -0.075 over 5mm ø -0.1 to -0.125

117M8

Insert Design Part No.: 117M8 Thread Size: M8 Pitch (internal): 1.25 Dia (external) B (± 0.25): 11.50 Length L (± 0.05): 12.457 Pin Design Length G (+0.0/-0.25): 12.15 Diameter H: 6.80 Lead K: 1.00 Pin Design øH tolerances up to 5mm ø -0.05 to -0.075 over 5mm ø -0.1 to -0.125

117M4

Insert Design Part No.: 117M4 Thread Size: M4 Pitch (internal): 0.70 Dia (external) B (± 0.25): 5.90 Length L (± 0.05): 7.125 Pin Design Length G: (+0.0/-0.25) 6.80 Diameter H: 3.30 Lead K: 0.85 Pin Design øH tolerances up to 5mm ø -0.05 to -0.075 over 5mm ø -0.1 to -0.125

117M5

Insert Design Part No.: 117M5 Thread Size: M5 Pitch (internal): 0.80 Dia (external) B (± 0.25): 6.60 Length L (± 0.05): 7.825 Pin Design Length G: (+0.0/-0.25) 7.50 Diameter H: 4.20 Lead K: 0.90 Pin Design øH tolerances up to 5mm ø -0.05 to -0.075 over 5mm ø -0.1 to -0.125

117M3

Insert Design Part No.: 117M3 Thread Size: M3 Pitch (internal): 0.50 Dia (external) B (± 0.25): 4.15 Length L (± 0.05): 4.725 Pin Design Length G: (+0.0/-0.25) 4.40 Diameter H: 2.50 Lead K: 0.75 Pin Design øH tolerances up to 5mm ø -0.05 to -0.075 over 5mm ø -0.1 to -0.125

117M3.5

Insert Design Part No.: 117M3.5 Thread Size: M3.5 Pitch (internal): 0.60 Dia (external) B (± 0.25): 5.00 Length L (± 0.05): 5.875 Pin Design Length G: (+0.0/-0.25) 5.85 Diameter H: 2.90 Lead K: 0.80 Pin Design øH tolerances up to 5mm ø -0.05 to -0.075 over 5mm ø -0.1 to -0.125

017M2

Insert Design Part No.: 017M2 Thread Size: M2 Pitch (internal): 0.40 Dia (external) B (± 0.25): 3.40 Length L (± 0.05): 3.925 Pin Design Length G: (+0.0/-0.25) 3.60 Diameter H: 1.60 Lead K: 0.70 Pin Design øH tolerances up to 5mm ø -0.05 to -0.075 over 5mm ø -0.1 to -0.125

017M2.5

Insert Design Part No.: 017M2.5 Thread Size: M2.5 Pitch (internal): 0.45 Dia (external) B (± 0.25): 4.15 Length L (± 0.05): 4.725 Pin Design Length G (+0.0/-0.25): 4.40 Diameter H: 2.05 Lead K: 0.70 Pin Design øH tolerances up to 5mm ø -0.05 to -0.075 over 5mm ø -0.1 to -0.125

017250BSP

Insert Design Part No.: 017250BSP Thread Size: 1/4"BSP Pitch (internal): 19 TPI Dia (external) B (± 0.25): 18.00 Length L (± 0.05): 11.950 Pin Design Length G: (+0.0/-0.25) 11.625 Diameter H: 11.69 Lead K: 1.00 Pin Design øH tolerances up to 5mm ø -0.05 to -0.075 over 5mm ø -0.1 to -0.125

017125BSP

Insert Design Part No.: 017125BSP Thread Size: 1/8"BSP Pitch (internal): 28 TPI Dia (external) B (± 0.25): 13.90 Length L (± 0.05): 11.000 Pin Design Length G: (+0.0/-0.25) 10.675 Diameter H: 8.75 Lead K: 1.00 Pin Design øH tolerances up to 5mm ø -0.05 to -0.075 over 5mm ø -0.1 to -0.125

116M4

Insert Design Part No.: 116M4 Thread Size: M4 Pitch (internal): 0.70 Dia (external) B (± 0.25): 5.90 Bolt Engagement E (min): 5.45 No. of Full Threads: 7.00 Length L (± 0.25): 8.700 Pin Design Length G (+0.0/-0.25): 5.80 Diameter H: 3.30 Lead K: 0.85 Pin Design øH tolerances ± 0.0125

116M5

Insert Design Part No.: 116M5 Thread Size: M5 Pitch (internal): 0.80 Dia (external) B (± 0.25): 6.60 Bolt Engagement E (min): 6.45 No. of Full Threads: 7.00 Length L (± 0.25): 9.500 Pin Design Length G (+0.0/-0.25): 6.70 Diameter & Length H: 4.20 Lead K: 0.90 Pin Design øH tolerances ± 0.0125

1 2 … 38 39 40 41
