100

Grooved Pin S5 Full length parallel grooves DIN1470 Part No. 100 Typical Applications Plain spigot on one end of pin allows the fastener to be easily located in the drilled hole before assembly Maximum retention from parallel grooves Plain spigot length can be increased for special applications Application as for part no. 059 (Note […]

062

Grooved Pin S6 Half length tapering grooves annular ring Part No. 062 Typical Applications Combination of tapered grooves and annular ring provides a dual purpose pin fastener. For use in drilled through holes. For applications where reciprocating springs, circlips or retainers need to be used. (Note : Letters denote critical dimensions of Grooved Pins, […]

056

Grooved Pin S2 Half length tapering grooves DIN1472 Part No. 056 Typical Applications Plain portion over half length serves as free moving hinge pin for application as a dowel pin or linkage bolt; axle or bearing pin. Half tapered grooves ease assembly in through drilled holes. (Note : Letters denote critical dimensions of Grooved Pins, […]

059

Grooved Pin S3 Full length parallel grooves DIN1473 Part No. 059 Typical Applications Maximum retention over whole length produced by full length parallel grooves Suitable for applications involving longitudinal stress and vibration Replaces type 055 where improved performance is required. (Note : Letters denote critical dimensions of Grooved Pins, please contact Tappex for details). […]

057

Grooved Pin S4 Half length reverse tapering grooves DIN1474 Part No. 057 Typical Applications Reverse taper groove eases installation into blind drilled holes. Half length plain portion can be used as a drive element stop pin or bearing. Plain portion can also be used as a handle replacing an expensive threaded component. (Note : […]

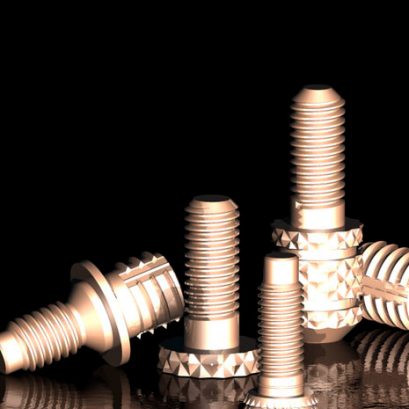

5345

Part Nos 545 / 536 / 537 / 539 / 538 / 570 / 5345 / 5336 Male versions of Tappex Trisert 145 / 136 / 137 / 139 / 138 / 170 / 345 / 336 Material: Brass - to BS EN 12164 CW 614N REACH/RoHS compliant as per the candidate list of substances [...]

055

Grooved Pin S1 Full length tapering grooves DIN1471 Part No. 055 Typical Applications Original replacement for a conventional taper pin eliminating reaming of drilled holes thereby reducing machining time. Tapered grooves allow easy progressive installation. Used as a locking pin, fixing pin or connecting pin. (Note : Letters denote critical dimensions of Grooved Pins, please […]

516

Part Nos: 516 / 517 / 518 Male versions of Tappex HiMould 116 / 117 / 118 Material: Brass - to BS EN 12164 CW 614N REACH/RoHS compliant as per the candidate list of substances of very high concern. Finish: Self-Colour. Special finishes to customer requirements, at extra cost. Description: The Male HiMould is designed [...]

571

Part Nos 501 / 502 / 506 / 571 / 572 / 573 Male versions of Tappex Multisert 001 / 002 / 006 / 071 / 072 / 073 Material: Brass - to BS EN 12164 CW 614N REACH/RoHS compliant as per the candidate list of substances of very high concern. Finish: Self-Colour. Special finishes [...]

240M6

Insert Design Part No.: 240M6 Thread Size: M6 Pitch (internal): 1.00 Pitch (external) P: 2.82 Diameter (external) B: 10.00 Head Thickness T: 0.60 Head Diameter D: 10.00 Length L: 16.00 Pin Design Hole Diameter C: 8.40-9.30 Hole Depth Y: 17.60 Boss Diameter X: 23.30 Wall Thickness W: 7.00

240M8

Insert Design Part No.: 240M8 Thread Size: M8 Pitch (internal): 1.25 Pitch (external) P: 3.63 Diameter (external) B: 12.00 Head Thickness T: 0.70 Head Diameter D: 12.00 Length L: 20.00 Hole Design Hole Diameter C: 10.40-11.30 Hole Depth Y: 22.00 Boss Diameter X: 28.30 Wall Thickness W: 8.50

240M4

Insert Design Part No.: 240M4 Thread Size: M4 Pitch (internal): 0.70 Pitch (external) P: 2.31 Diameter (external) B: 7.10 Head Thickness T: 0.50 Head Diameter D: 7.10 Length L: 11.00 Hole Design Hole Diameter C: 5.70-6.50 Hole Depth Y: 12.10 Boss Diameter X: 16.30 Wall Thickness W: 4.90

240M5

Insert Design Part No.: 240M5 Thread Size: M5 Pitch (internal): 0.80 Pitch (external) P: 2.54 Diameter (external) B: 8.70 Head Thickness T: 0.50 Head Diameter D: 8.70 Length L: 12.00 Hole Design Hole Diameter C: 7.20-8.10 Hole Depth Y: 13.20 Boss Diameter X: 20.30 Wall Thickness W: 6.10

040M6

Insert Design Part No.: 040M6 Thread Size: M6 Pitch (internal): 1.00 Pitch (external) P: 2.82 Diameter (external) B: 10.00 Length L: 12.00 Hole Design Hole Diameter C: 8.40-9.30 Hole Depth Y: 13.20 Boss Diameter X: 23.30 Wall Thickness W: 7.00

040M8

Insert Design Part No.: 040M8 Thread Size: M8 Pitch (internal): 1.25 Pitch (external) P: 3.63 Diameter (external) B: 12.00 Length L: 16.00 Hole Design Hole Diameter C: 10.40-11.30 Hole Depth Y: 17.60 Boss Diameter X: 28.30 Wall Thickness W: 8.50

240M3

Insert Design Part No.: 240M3 Thread Size: M3 Pitch (internal): 0.50 Pitch (external) P: 1.81 Diameter (external) B: 5.50 Head Thickness T: 0.50 Head Diameter D: 5.50 Length L: 9.00 Hole Design Hole Diameter C: 4.25-5.00 Hole Depth Y: 9.90 Boss Diameter X: 12.50 Wall Thickness W: 3.75

1 2 … 23 24 25 26 27 … 40 41
